use ipad with interactive whiteboard

Discussion in 'iPAD Connect' started by sallya, Aug 3, 2012.

Thread Status:
Not open for further replies.
  1. sallya

    sallya iPF Noob

    Joined:
    Aug 3, 2012
    Messages:
    5
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    australia
    Ratings:
    +0 / 0
    i am a music teacher who is struggling to work out how to connect my ipad to the interactive whiteboard (smartboard) so that we can both view the picture and hear the sound. i have a VGA connection. i am able to have only sound or picture, not both. i have tried using a cord with a jack on each end, connecting to the ipad and the wall plate, with no luck. what connection should i be using? (very frustrating!!)

  2. Bosvaark

    Bosvaark iPad Enthusiast

    Joined:
    Jun 10, 2012
    Messages:
    388
    Thanks Received:
    10
    Trophy Points:
    0
    Location:
    Cape Town
    Ratings:
    +11 / 0
    What type of connector are you using , take a picture of the connection leads and how they are connected to the iPad , post here so we can see how and where you might be going wrong.

    • Agree Agree x 1
  3. KevinJS

    KevinJS Super Moderator Staff Member

    Joined:
    Aug 6, 2011
    Messages:
    10,276
    Thanks Received:
    782
    Trophy Points:
    113
    Location:
    Edmonton AB Canada
    Ratings:
    +889 / 0

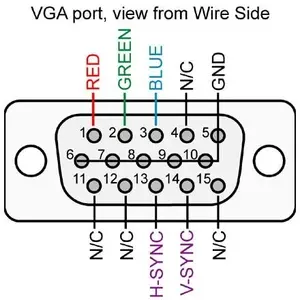

    From the depths of memory, I believe VGA carries only video. You may need to acquire Bluetooth speakers, unless your VGA connector also has a separate cable for sound.




    Just found this. no sound. N/C=no connection.

  4. sallya

    sallya iPF Noob

    Joined:
    Aug 3, 2012
    Messages:
    5
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    australia
    Ratings:
    +0 / 0
    that sounds possible. i will do this on wednesday when i am next at school. :)

  5. Bosvaark

    Bosvaark iPad Enthusiast

    Joined:
    Jun 10, 2012
    Messages:
    388
    Thanks Received:
    10
    Trophy Points:
    0
    Location:
    Cape Town
    Ratings:
    +11 / 0
    Ok great it will help.

  6. sallya

    sallya iPF Noob

    Joined:
    Aug 3, 2012
    Messages:
    5
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    australia
    Ratings:
    +0 / 0

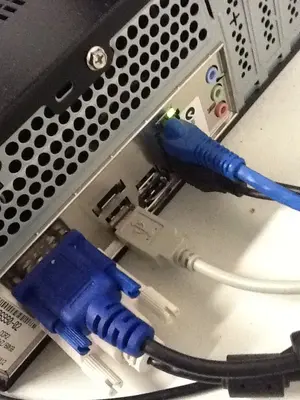

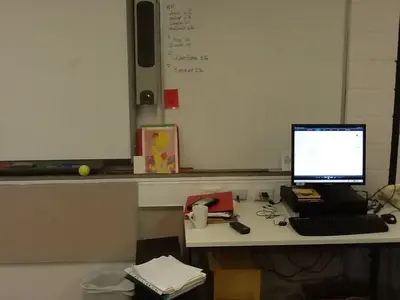

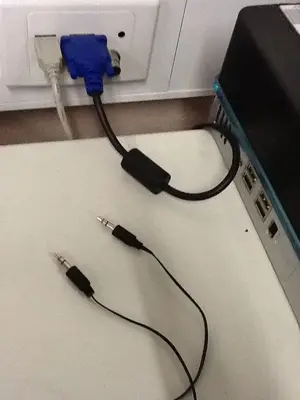

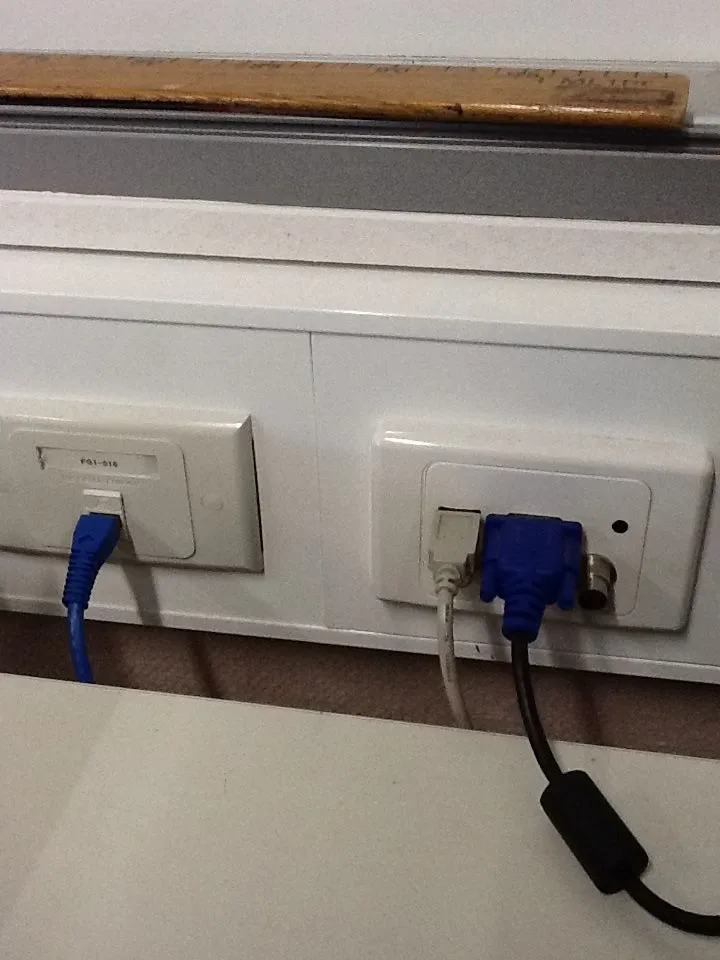

    IMG_0884.JPGIMG_0885.JPGIMG_0886.JPGIMG_0887.JPGIMG_0888.JPGhello bosvaark. i hope these pics help.....

  7. Bosvaark

    Bosvaark iPad Enthusiast

    Joined:
    Jun 10, 2012
    Messages:
    388
    Thanks Received:
    10
    Trophy Points:
    0
    Location:
    Cape Town
    Ratings:
    +11 / 0

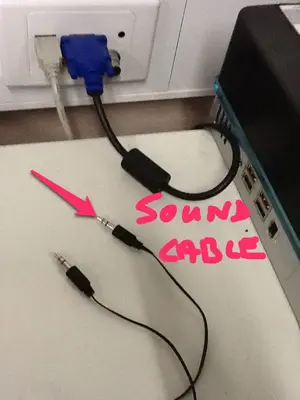

    Thanks, the pics do help ,I have made notes on your pics,
    The sound cable plugs into the audio jack of your iPad , top left corner

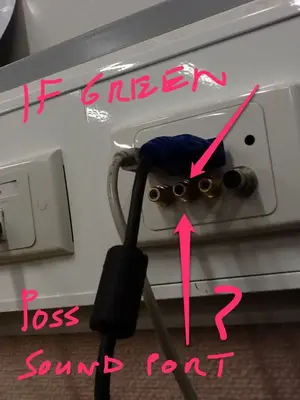

    Then it should plug into a green " in " port/jack on the white board, your photo isn't clear enough for me to distinguish actual colors but green is the default color for sound in on a pc ,the iPad will be "out" portion of your audio




    Last edited: Aug 11, 2012
  8. Bosvaark

    Bosvaark iPad Enthusiast

    Joined:
    Jun 10, 2012
    Messages:
    388
    Thanks Received:
    10
    Trophy Points:
    0
    Location:
    Cape Town
    Ratings:
    +11 / 0

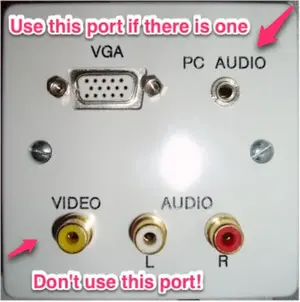

    Further views of the one pic leads me to believe you migh have these ports, if possible clarify , by using my pics with notes below , this is another white board port layout which has a separate dedicated audio 3.5mm jack,

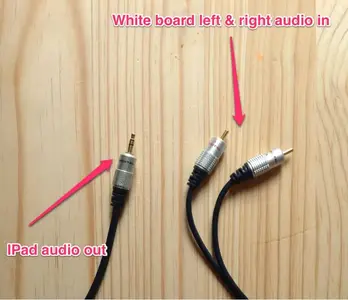

    If your white board has only one video ( yellow ) and two audio port red and black (L&R) then you need to purchase an audio lead from your local audio vision shop, the lead is a 3,5 mm to split L&R cable as shown in my next pic.



  9. Bosvaark

    Bosvaark iPad Enthusiast

    Joined:
    Jun 10, 2012
    Messages:
    388
    Thanks Received:
    10
    Trophy Points:
    0
    Location:
    Cape Town
    Ratings:
    +11 / 0

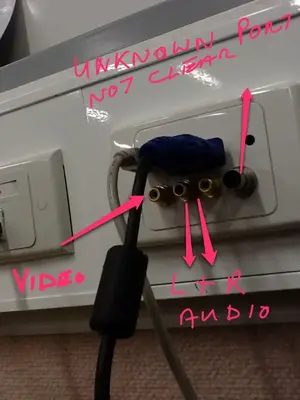

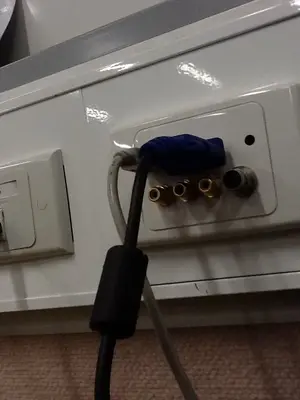

    I brightened your pic and can now clearly see the colors as shown in you pic, except the one port on the right.




  10. Bosvaark

    Bosvaark iPad Enthusiast

    Joined:
    Jun 10, 2012
    Messages:
    388
    Thanks Received:
    10
    Trophy Points:
    0
    Location:
    Cape Town
    Ratings:
    +11 / 0
    Ignore my pic with note here, it is inconclusive.

  11. sallya

    sallya iPF Noob

    Joined:
    Aug 3, 2012
    Messages:
    5
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    australia
    Ratings:
    +0 / 0
    thanks. i will try this next.

  12. sallya

    sallya iPF Noob

    Joined:
    Aug 3, 2012
    Messages:
    5
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    australia
    Ratings:
    +0 / 0
    this suggestion WORKED!! made my day today:))) thanks so much for your help.

  13. Bosvaark

    Bosvaark iPad Enthusiast

    Joined:
    Jun 10, 2012
    Messages:
    388
    Thanks Received:
    10
    Trophy Points:
    0
    Location:
    Cape Town
    Ratings:
    +11 / 0
    That's great news, thanks for replying back on the forum.

  14. cooperwood

    cooperwood iPF Noob

    Joined:
    Feb 6, 2015
    Messages:
    1
    Thanks Received:
    0
    Trophy Points:
    1
    Location:
    melbourne
    Ratings:
    +0 / 0
    hi..you can connect your interactive whiteboard with the ipod through the VGA connection.In VGA there are two port one is for sound and another is for video.You can connect both the cable on interactive whiteboard.May this help you.

  15. scifan57

    scifan57 Super Moderator Staff Member

    Joined:
    Dec 3, 2011
    Messages:
    22,427
    Thanks Received:
    3,727
    Trophy Points:
    113
    Location:
    Regina,Canada
    Ratings:
    +4,697 / 4
    This thread is 2 1/2 years old and has already been answered to the OP's satisfaction.

    With that, this thread is now closed.
