    I recommend looking over this thread about winterboard,
    http://www.ipadforums.net/jailbreak...90-how-create-your-own-winterboard-theme.html
    and I will help you to fill in and show how to make custom icons.

    So, after step 5, stop. There is 2 ways of doing this;
    1. Use winterboard and you won't have to restore if you screw up. And you can save the theme so it will be really easy to apply the icons if you restore or upgrade.
    2. Directly change the icons and risk having to restore and start all over again.

    Way 1, After step 5 you will create a folder inside your them folder called "Bundles". (so actually, stop after step 6).
    Now, you will have to find the bundle identifier of each app. (this will take a while)
    So, on the left of ifile tap on applications. Then tap the gear icon on the bottom bar and make sure "application names" is turned on.
    Tap on any app and then tap on the app's folder (appname.app).
    Scroll down to info.plist.
    Tap on it and open it in the property list viewer.

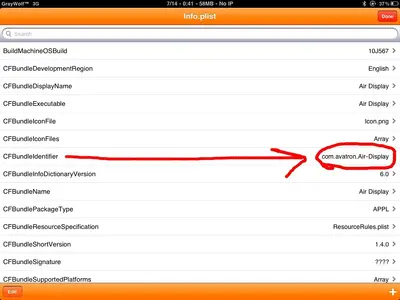

    You want the bundle identifier. (see picture 1) that is what you are going to name the folder that will contain the icon in your theme folder.
    You can copy it, and go back to your theme folder.
    Open the bundles folder and create a new folder and paste the bundle identifier so the folder is named the bundle identifier. (so it will be com.something.something)
    Now in that folder is where the icon will go. So make your icon and name it icon72.png
    One down and however many apps you have to go! Just make a new folder named the bundle identifier of the app and containing the icon in the bundles folder.

    To apply the theme open winterboard and select your theme.

    To save the theme in case of explosion,
    Follow this guide to SSH: http://www.ipadforums.net/jailbreak...33787-how-use-ssh-wireless-file-transfer.html
    Once you got that going,
    Click on VAR/ STASH/themes.whatever and drag and drop your theme folder to your desktop or another folder to save it.

    Way 2, This is not recommended because if you misspell something or screw something up, you may have to restore or reinstall the app losing any data. SYNC WITH ITUNES FIRST so if you do screw something up you don't have to lose important data.
    So, tap on applications on the left of ifile and open an app.
    Tap on the app's folder (appname.app)
    Scroll down to icon72.png You will replace that icon with your icon. Easy.
    You can get pictures from the camera roll, (there is a link below applications on the left)
    Or add pictures by SSH.

    Last edited: Jul 14, 2011
  2. graywolf

    graywolf iPad Super Guru

    Joined:
    Aug 22, 2010
    Messages:
    3,652
    Thanks Received:
    35
    Trophy Points:
    0
    Location:
    Raleigh, NC USA
    Ratings:
    +35 / 0
    Pic 1


    Attached Files:

  3. TheRambler

    TheRambler Super Moderator Staff Member

    Joined:
    Jun 19, 2011
    Messages:
    3,068
    Thanks Received:
    124
    Trophy Points:
    63
    Location:
    Lancashire, England.
    Ratings:
    +125 / 0
    Be careful. You are not in a bar. Edited by Moderator ~ SP

    Last edited by a moderator: Jul 28, 2011
  4. Svrdhd

    Svrdhd iPF Novice

    Joined:
    Jul 13, 2011
    Messages:
    33
    Thanks Received:
    1
    Trophy Points:
    0
    Location:
    Atlanta, USA
    Ratings:
    +1 / 0
    Thanks, Wolf.
    Very helpful!

  5. Kama45

    Kama45 iPF Noob

    Joined:
    Jul 28, 2011
    Messages:
    1
    Thanks Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0
    Thanks. Very helpful.
