Discussion in 'iPad General Discussions' started by fitzpatrick2362, Dec 21, 2011.

  1. fitzpatrick2362
    Offline

    fitzpatrick2362 iPF Novice

    Joined:
    Jun 18, 2011
    Messages:
    13
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    Scotland
    Ratings:
    +0 / 0
    Hi,

    I have just purchased a composite cable for the ipad2. It is for a relative who has an older tv and i think that they will only have the 3 ports. What I am wondering though is should it work if you have a tv with component outputs instead of composite. I have tried it on my tv with component outputs but I am only getting audio. Also as I am in the uk, tv output should be set to PAL???

    Any help please
  2. oberkc
    Offline

    oberkc iPad Fan

    Joined:
    Jun 26, 2011
    Messages:
    211
    Thanks Received:
    8
    Trophy Points:
    0
    Location:
    Springfield OH
    Ratings:
    +8 / 0
    Composite and component are different animals and incompatible. I do not expect your component INPUTs on your TV to be able to accept a composite signal. I don't believe PAL or NTSC has anything to do with it.
  3. Poser
    Offline

    Poser iPad Junkie

    Joined:
    Jul 2, 2011
    Messages:
    816
    Thanks Received:
    27
    Trophy Points:
    0
    Location:
    toronto
    Ratings:
    +27 / 0
    Composite - SD(standard definition), 480i. Yellow cable.
    Audio - red and white cable(must be used with composite or component to get sound).

    Component - HD(High Definition), somewhat, it varies....earlier days was only 480p, but standard component these days, it can do 1080i/720P, some claim 1080P(xbox360 etc).
    Red, blue and green cable.



    you are getting sound, because you have the audio cables plugged in, red and white cable.

    to get video with component, all 3 have to be plugged in(red, blue, green)...... whereas only yellow shows video for composite.

    [​IMG]

    that Coaxial(orange) input is for digital sound(better than stereo - which is red and white cables),.... which can be used to connect to a Surround sound receiver or a Micro system(boom box).

    Optical is better than Coaxial, but goes head to head with HDMI for sound, but HDMI is the best for sound.
    [​IMG][​IMG]




    HDMI(1080P) - all cables in 1. Handles everything(it even auto-power on/off connected devices, with that feature enable on the device).

    [​IMG]
  4. ajricaud
    Offline

    ajricaud iPF Novice

    Joined:
    Nov 7, 2010
    Messages:
    59
    Thanks Received:
    0
    Trophy Points:
    6
    Location:
    L.A. Co.
    Ratings:
    +0 / 0
    Depending on your TV, they may not be "incompatible". I have a VCR composite output connected to one of the component video inputs on my TV. I don't recall which input offhand, though (i.e. red, green or blue) but I think it's the red one. Try connecting yours and see if it works. You can't hurt anything because they are both standard video inputs.
  5. ajricaud
    Offline

    ajricaud iPF Novice

    Joined:
    Nov 7, 2010
    Messages:
    59
    Thanks Received:
    0
    Trophy Points:
    6
    Location:
    L.A. Co.
    Ratings:
    +0 / 0
  6. Poser
    Offline

    Poser iPad Junkie

    Joined:
    Jul 2, 2011
    Messages:
    816
    Thanks Received:
    27
    Trophy Points:
    0
    Location:
    toronto
    Ratings:
    +27 / 0

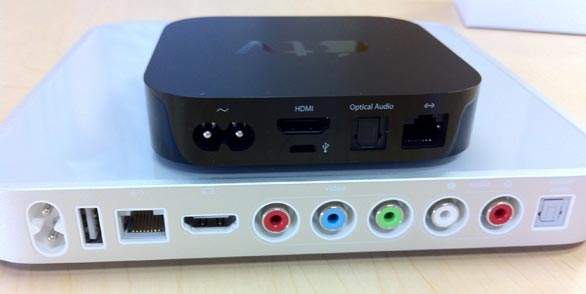

    Apple TV 1 and 2.

    [​IMG]

    i have ATV 2 connected to my 7.1 surround using Optical for sound, this way i can power off the Television, while still using Airplay for music.

    I know i can use HDMI to Receiver, but satisfied for now.

    i still use Coaxial for a DVD recorder i have, to receiver.
  7. fitzpatrick2362
    Offline

    fitzpatrick2362 iPF Novice

    Joined:
    Jun 18, 2011
    Messages:
    13
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    Scotland
    Ratings:
    +0 / 0
    thanks guys. I think that I only have component inputs and not composite. I dont have a yellow and have 2 audio and a red blue and green input, thats why I cant get the composite cable to play video
  8. ajricaud
    Offline

    ajricaud iPF Novice

    Joined:
    Nov 7, 2010
    Messages:
    59
    Thanks Received:
    0
    Trophy Points:
    6
    Location:
    L.A. Co.
    Ratings:
    +0 / 0
    Try connecting to the red, blue and green in that order and see if one of them will work for you. I did that w/my TV and it worked.
