How To Guide for Using VoiceOver in iOS 5.1

Gabriel1

iPF Noob
Joined
Mar 11, 2011
Messages
17,091
Reaction score
747
Location
Cranbrook, Kent, UK
This How To guide is designed for those who are visually impaired, or those who know someone who is. It will show how they can enable the specific functions that Apple provide as standard to aid them in their use of their iPad.

VoiceOver provides a variety of functions to enable those who have limited or zero vision to be able to use their iPad. It will give descriptions of any area of the screen, speak as you type, allow you to choose options and functions and even connect to Braille devices. With the advent of iOS 5 everyone can enjoy using an iPad.

VoiceOver will tell you which orientation that your iPad is in, it will also tell you if the rotation of the screen is locked. It will announce when you go to a new screen then read the first item on that screen (normally the item or app at the top left of the screen.

You can navigate by tapping or dragging your fingers around the screen and VoiceOver will describe what is at the location where your fingers are.

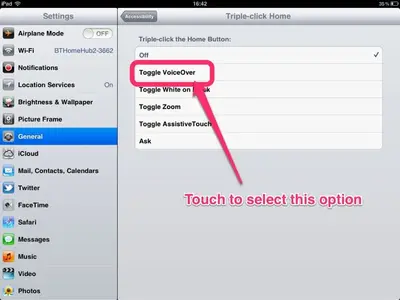

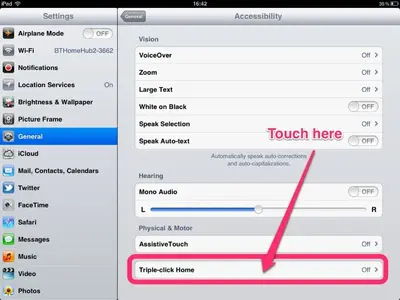

To be able to quickly turn VoiceOver on and off the triple click home button function can be enabled.......

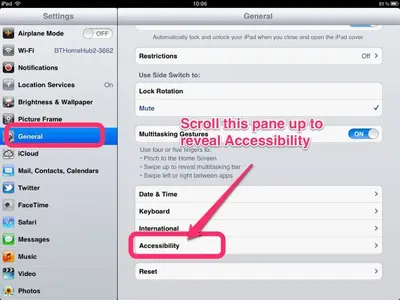

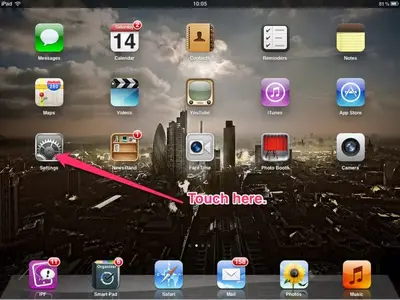

To enable theVoiceOver function we first have to open the the Settings App. By default the App will open on the General Tab. Then scroll down to the Accessibility tab on the right hand side.this will then open the menu containing VoiceOver.........

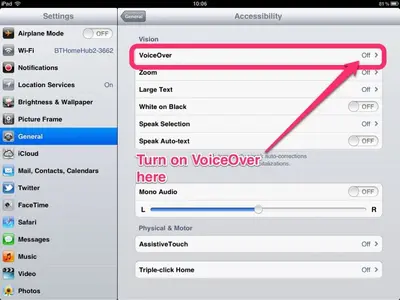

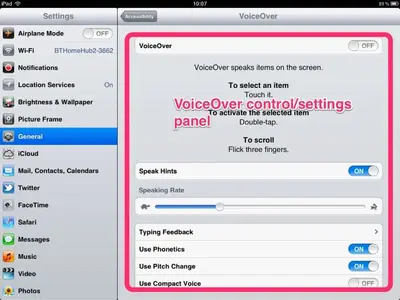

You should now have the VoiceOver control panel open. So it's time to turn it on, but before you do you'll need to learn a few things which are different to normal. Firstly not all the normal gestures will work, secondly, we have some new functions which are.....

Single Tap: a single tap anywhere on the screen will highlight that area and describe what is there, if it's text it will read the text and tell you if there is a function associated with it and how to operate it.

Double Tap: this will select the item, for example it will turn a function in settings from off to on.

Triple Tap: this will take you back to the home screen.

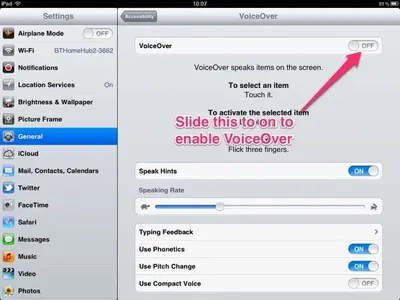

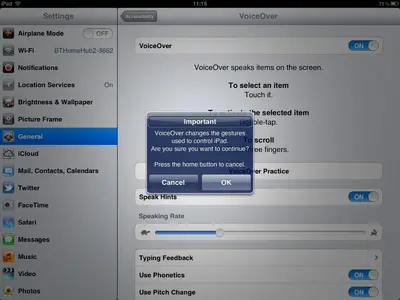

So, now turn VoiceOver on. The first time you do this you should see this screen which just warns you that gestures settings will change.

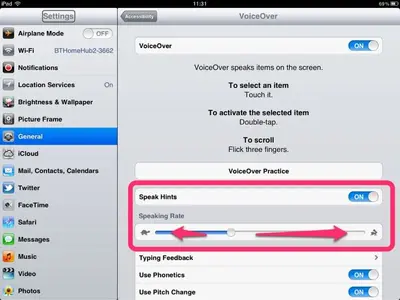

Your iPad should now be talking to you and describing anything that you touch on the screen. So let's look at a couple of the key settings, Speak Hints and the Speaking Rate controller for the iPads speech. (NOTE: you can mute/un-mute VoiceOver by double tapping the screen with three fingers.)






When Speak Hints is turned on it will also tell you if a function is available and if it is then it will tell you how to activate it. This function defaults to on and unless you are an experienced user it is probably best to leave it on.

The Speaking Rate controller does what it says, it allows you to speed up or slow down the speed the VoiceOver speaks at. To adjust the Speaking Rate, double tap and hold then drag to the left to slow down or drag to the right to speed up.

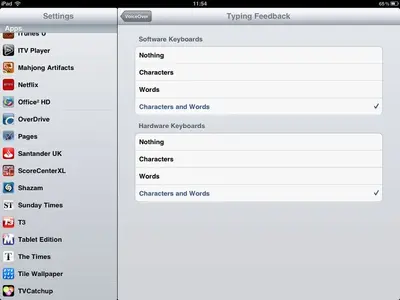

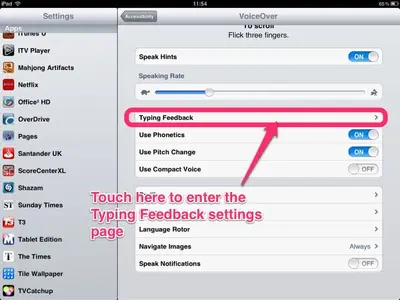

Next we will look at Typing Feedback, by default this is set to both characters and words for both the software keyboard and hardware keyboards (it is not advisable to change these settings)......









These settings are fairly self explanatory but should you be unsure, Nothing - no feedback when typing letters or for completed words; Characters - only feedbacks on typed letters; Words - only feedbacks on completed words; Characters and Words - feedbacks both individual letters and completed words.

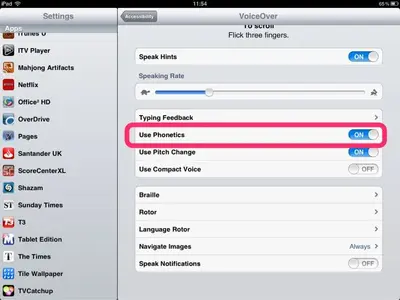

The next setting is Use Phonetics......






This setting works when typing, when switched on, instead of just speaking the letter being typed it will also speak the Phonetic Alphabet, for example, if you type the letter e, it will say "e" followed by "echo".

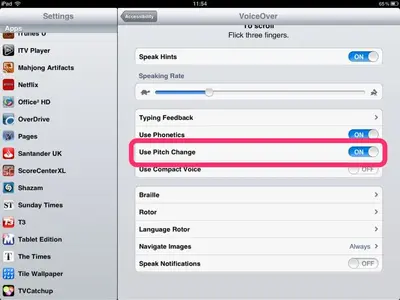

Now we will look at the Pitch Change function.......






When enabled this has a couple of functions. When typing a higher pitch is used when entering a letter and a lower pitch is used when deleting a letter. Whilst reading, the first word is read at a higher pitch and the last word is spoken at a lower pitch.

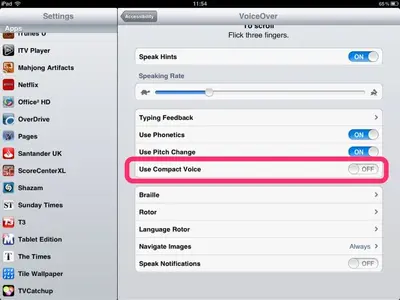

The Compact Voice function changes the reading voice. This setting is either off or on.......

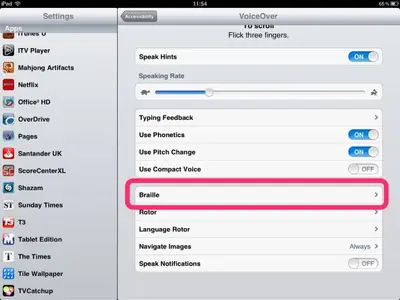

Next up is Braille. iOS 5.x.x has support for many external Bluetooth devices. For a complete list check out this link http://www.apple.com/accessibility/iphone/braille-display.html

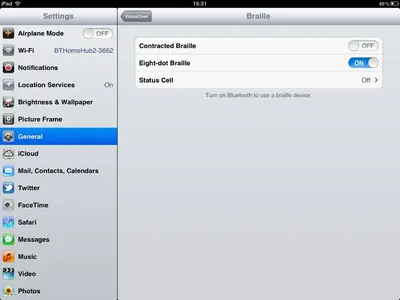

The Braille settings can be found here.......

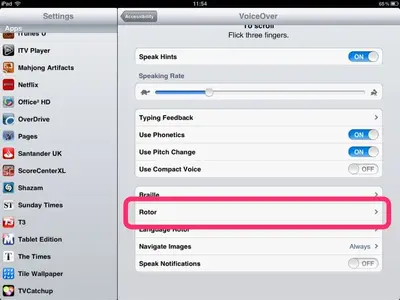

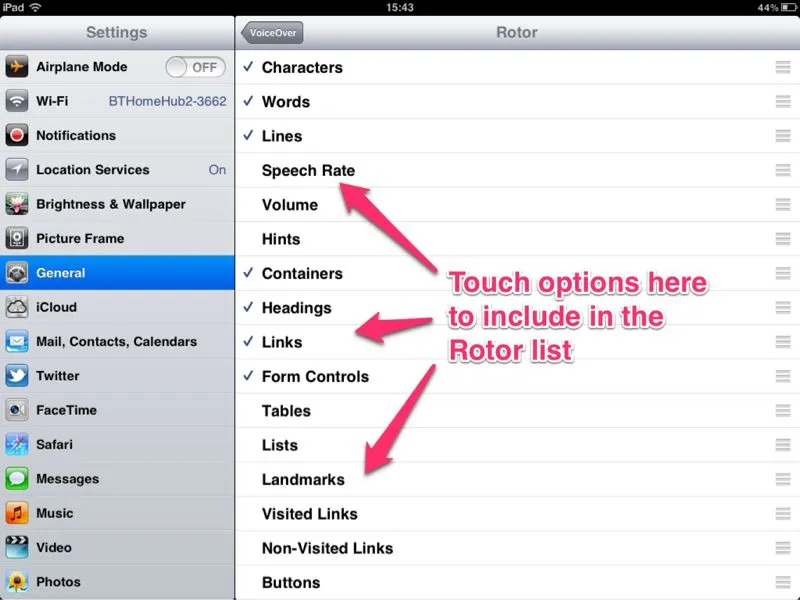

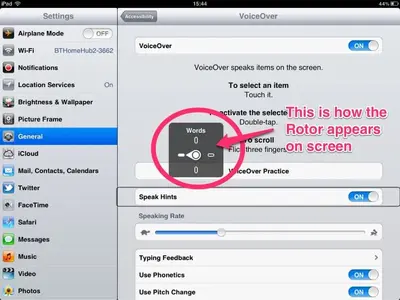

The Rotor control is an amazing little secret of iOS VoiceOver. It is a virtual dial which can change the function and results of the up/down flick gestures (described further on in this guide). To use the Rotor control, place two fingers on the screen and rotate one finger around the other, the dial will appear and as you rotate different options will appear on the dial.......

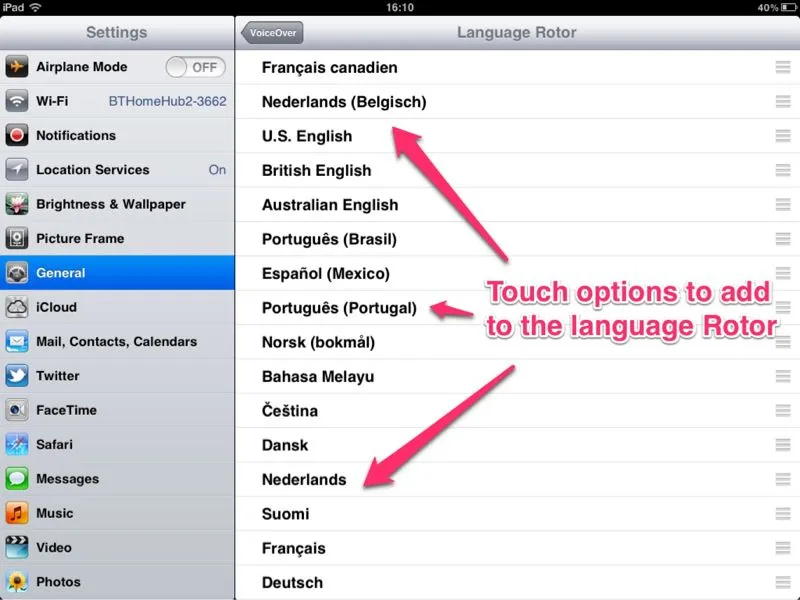

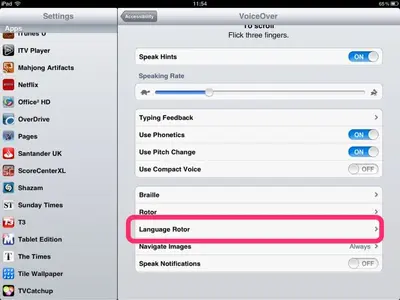

If you are typing then the Rotor can be used to change the language that you are typing in.......

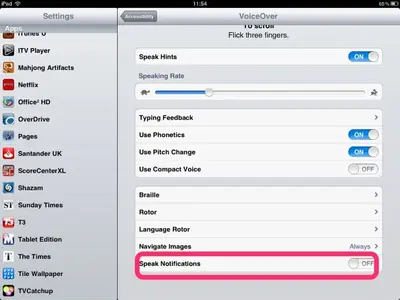

Speak Notifications does exactly what it says on the tin, it will tell you what the notifications are when you unlock your iPad. If this function is turned off then it will just speak the time when you unlock your iPad.






In the next posts I will add the list of commands and options which are available in iOS for the VoiceOver function.

This is really the tip of the iceberg for what can be achieved using the VoiceOver function. For indepth reading on this you can download the iPad User Guide For iOS 5.1 in the iBooks Store and search for VoiceOver. The guide is completely free and should be required reading for new users of iPads.

Further information can also be found at Apple's website here http://www.apple.com/accessibility/ipad/vision.html

NOTE: For those with limited vision it is worth noting that VoiceOver and Zoom functions cannot be used at the same time.

TIP!: Up and down flicking (when enabled in Rotor) - The effect of the rotor depends on what you’re doing. When you read text in an email, you can use the rotor to switch between hearing text spoken word-by-word, character-by-character, or line-by-line when you flick up or down. When you browse a webpage, you can use the rotor setting to hear all the text (either word-by-word or character-by-character), or to jump from one element to another of a certain type, such as headers or links. (this paragraph is copied from the IPad User Guide For iOS 5.1 available for free in the iBooks store).

TIP!: If you want to choose an item by name rather than search around the screen you can triple tap the screen with two finger which will bring up a search box and you can type in the item name.

TIP!: So you want to hear your battery strength or wifi signal strength, it's almost too easy, tap the very top of the screen and your iPad will tell you!

TIP!: So you want to revert to normal gestures whilst using VoiceOver, you can do that too! Double tap and hold the screen, the iPad will make a noise to inform you that normal gestures are in use, they will remain in use until you remove your finger.

The Archangel

OP
Gabriel1

Gabriel1

iPF Noob
Joined
Mar 11, 2011
Messages
17,091
Reaction score
747
Location
Cranbrook, Kent, UK
Guide to VoiceOver Gestures: (taken from iPad User Guide For iOS 5.1)

Navigate and read:

Tap: Speak item.
Flick right or left: Select the next or previous item.
Flick up or down: Depends on the Rotor Control setting.
Two-finger tap: Stop speaking the current item.
Two-finger flick up: Read all from the top of the screen.
Two-finger flick down: Read all from the current position.
Two-finger "scrub": Move two fingers back and forth three times quickly (making a "z") to dismiss an alert or go back to the previous screen.
Two-finger triple tap: Open the Item Chooser.
Three-finger flick up or down: Scroll one page at a time.
Three-finger flick right or left: Go to the next or previous page (such as the Home screen, Stocks, or Safari).
Three-finger tap: Speak additional information, such as position within a list or whether text is selected.
Four-finger tap at top of screen: Select the first item on the page.
Four-finger tap at bottom of screen: Select the last item on the page.



Activate:

Double-tap: Activate the selected item.
Triple-tap: Double-tap an item.
Split-tap: An alternative to selecting an item and double-tapping is to touch an item with one finger, then tap the screen with another to activate an item.
Touch an item with one finger, tap the screen with another finger ("split-tapping"): Activate the item.
Double-tap and hold (1 second) + standard gesture: Use a standard gesture.
The double-tap and hold gesture tells iPad to interpret the subsequent gesture as standard. For example, you can double-tap and hold, then without lifting your finger, drag your finger to slide a switch.
Two-finger double-tap: Play or pause in Music, Videos, YouTube, Voice Memos, or Photos. Take a photo (Camera). Start or pause recording in Camera or Voice Memos. Start or stop the stopwatch.
Two-finger double-tap and hold: Open the element labeler.
Two-finger triple-tap: Open the Item Chooser.
Three-finger double-tap: Mute or unmute VoiceOver.
Three-finger triple-tap: Turn the screen curtain on or off.

The Archangel

Last edited:
OP
Gabriel1

Gabriel1

iPF Noob
Joined
Mar 11, 2011
Messages
17,091
Reaction score
747
Location
Cranbrook, Kent, UK
Rotor Options (taken from IPad User Guide for iOS 5.1)


Reading text:
Select and hear text by:

Character, word, or line
Speaking
Adjust VoiceOver speaking by:

Volume or rate:
Use of typing echo, pitch change, or phonetics (using Apple Wireless Keyboard)
See Controlling VoiceOver using an Apple Wireless Keyboard.

Navigating:
Select and hear text by:

Character, word, or line
Heading
Link, visited link, non-visited link, or in-page link
Form control
Table or row (when navigating a table)
List
Landmark
Static text
Items of the same type
Buttons
Text fields
Search fields
Containers (screen regions such as the dock)
Zoom in or out

Entering text:
Move insertion point and hear text by:

Character, word, or line
Select edit function

Select language

Using a control:
Select and hear values by:

Character, word, or line
Adjust the value of the control object

The Archangel

OP
Gabriel1

Gabriel1

iPF Noob
Joined
Mar 11, 2011
Messages
17,091
Reaction score
747
Location
Cranbrook, Kent, UK
Wireless Keyboard Commands for VoiceOver (Taken from iPad User Guide For iOS 5.1)

VoiceOver keyboard commands
VO = Control-Option

Read all, starting from the current position
VO-A

Read from the top
VO-B

Move to the status bar
VO-M

Press the Home button
VO-H

Select the next or previous item
VO-Right Arrow or VO-Left Arrow

Tap an item
VO-Space bar

Double-tap with two fingers
VO-"-"

Choose the next or previous rotor item
VO-Up Arrow or VO-Down Arrow

Choose the next or previous speech rotor item
VO-Command-Left Arrow or VO-Command-Right Arrow

Adjust speech rotor item
VO-Command-Up Arrow or VO-Command-Down Arrow

Mute or unmute VoiceOver
VO-S

Turn the screen curtain on or off
VO-Shift-S

Turn on VoiceOver help
VO-K

Return to the previous screen, or turn off VoiceOver help
Escape

Quick Nav
Turn on Quick Nav to control VoiceOver using the arrow keys. Quick Nav is off by default.

Turn Quick Nav on or off
Left Arrow-Right Arrow

Select the next or previous item
Right Arrow or Left Arrow

Select the next or previous item specified by the rotor setting
Up Arrow or Down Arrow

Select the first or last item
Control-Up Arrow or Control-Down Arrow

“Tap” an item
Up Arrow-Down Arrow

Scroll up, down, left, or right
Option-Up Arrow, Option-Down Arrow, Option-Left Arrow, or Option-Right Arrow

Change the rotor
Up Arrow-Left Arrow or Up Arrow-Right Arrow

Single-letter Quick Nav for the web
When you view a web page with Quick Nav enabled, you can use the following keys on the keyboard to navigate the page quickly. Typing the key moves to the next item of the indicated type. Hold the Shift key as you type the letter to move to the previous item.

H: Heading

L: Link

R: Text field

B: Button

C: Form control

I: Image

T: Table

S: Static text

W: ARIA landmark

X: List

M: Element of the same type

1: Level 1 heading

2: Level 2 heading

3: Level 3 heading

4: Level 4 heading

5: Level 5 heading

6: Level 6 heading

The Archangel

Last edited:

skimonkey

Administrator
Staff member
Joined
Sep 11, 2011
Messages
18,938
Reaction score
1,405
Location
Michigan. USA
Gabriel1--Many, Many thanks for posting this very informative Tutorial with the use of the Skitch App. :)

This is extremely detailed with relevant links back to the Apple Website.

The Voice Over Settings is just amazing for those with visual impairments or that need Text-to-Speech help due to verbal and nonverbal limitations. I have yet to try all the settings out-the rotary setting is one that is very interesting.


Again Thank You-this will benefit many of our members here on how to use these wonderful settings!

Skimonkey

Last edited:

Sissy526

iPF Noob
Joined
Jun 2, 2012
Messages
27
Reaction score
1
Location
USA
With VoiceOver on, when I double-tap the screen wit two fingers at any time and in any app, whatever item I was last playing in the Music app starts up. I double tap and it turns it off. Is this a feature of VoiceOver or is there something wrong?


KarinainMilan

iPF Noob
Joined
Oct 21, 2012
Messages
11
Reaction score
0
Location
Milan
THANK you soo much, skimonkey and gabriel1! I am buying an iPad for my mother, who at 72 has just been diagnosed with macular degeneration after suddenly losing the vision in her right eye. She has always been very active and independent and now is having a very difficult time, both logistically and emotionally, with EVERYTHING, and I am sure that the iPad's voice capacities will aid her immensely. And your posts will aid ME immensely in setting up her iPad so that she can use it!! Thank you, once again. This forum is truly a godsend!!

OP
Gabriel1

Gabriel1

iPF Noob
Joined
Mar 11, 2011
Messages
17,091
Reaction score
747
Location
Cranbrook, Kent, UK
KarinainMilan said:
THANK you soo much, skimonkey and gabriel1! I am buying an iPad for my mother, who at 72 has just been diagnosed with macular degeneration after suddenly losing the vision in her right eye. She has always been very active and independent and now is having a very difficult time, both logistically and emotionally, with EVERYTHING, and I am sure that the iPad's voice capacities will aid her immensely. And your posts will aid ME immensely in setting up her iPad so that she can use it!! Thank you, once again. This forum is truly a godsend!!

Thank you, that is so good to hear.

I'll check out the differences between iOS 5 and iOS 6 and update if required.

The Archangel


skimonkey

Administrator
Staff member
Joined
Sep 11, 2011
Messages
18,938
Reaction score
1,405
Location
Michigan. USA
THANK you soo much, skimonkey and gabriel1! I am buying an iPad for my mother, who at 72 has just been diagnosed with macular degeneration after suddenly losing the vision in her right eye. She has always been very active and independent and now is having a very difficult time, both logistically and emotionally, with EVERYTHING, and I am sure that the iPad's voice capacities will aid her immensely. And your posts will aid ME immensely in setting up her iPad so that she can use it!! Thank you, once again. This forum is truly a godsend!!

You are so very welcome, Karina!

We are here for you anytime should you need help! Please let us know how your mom is as well. :)
