Replacement board that the Power Flex Cable plugs into

Discussion in 'iPad Help' started by Modify_inc, Mar 7, 2012.

  1. Modify_inc
    Offline

    Modify_inc iPF Noob

    Joined:
    Mar 7, 2012
    Messages:
    3
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    USA
    Ratings:
    +0 / 0

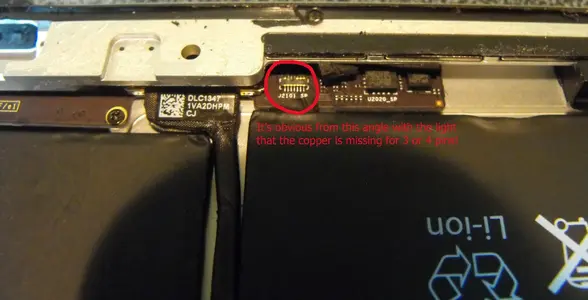

    What is the name of the board that the Power Flex Cable plugs into and can it be replaced? I think I broke the socket on this board trying to remove the old flex cable with all that tape around it. The copper that makes a rectangle around the socket has a small gap in the copper. I have ordered a new power flex cable and wont be able to test it until it arrives, but I have a feeling I'm going to need to replace that board.

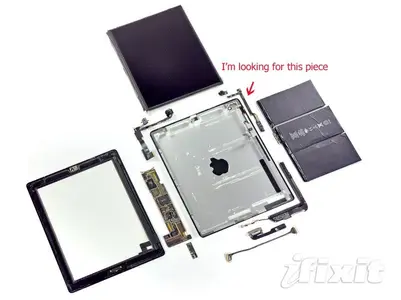

    Here is a picture of the socket and the board that will need to be replaced (not sure what the name of the board is though):


    iPad 2 Disassembled 2.jpg

    Thanks
    Mike
    Last edited: Mar 8, 2012
  2. Modify_inc
    Offline

    Modify_inc iPF Noob

    Joined:
    Mar 7, 2012
    Messages:
    3
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    USA
    Ratings:
    +0 / 0
    Somehow I forgot to mention this, but this is a iPad 2.
  3. joshty
    Offline

    joshty iPF Noob

    Joined:
    Jun 15, 2012
    Messages:
    1
    Thanks Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0
    Hi Mike, hiya doin. Hope you can guide me through. I broke my iPad 2s power flex cable and I also need replace it. I was looking for tutorials online but there seems to be no videos about the procedure. I ordered a replacement cable but I don't want to be in the same situation. Would you tell me what you did wrong?
    I would really appreciate anything you can suggest to prevent me from breaking the circuit board. Have a great day!
  4. ash303
    Offline

    ash303 iPF Novice

    Joined:
    Jun 14, 2012
    Messages:
    12
    Thanks Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0
    It's called the WiFi Sensor PCB. It has the accelerometers and connection for your power, volume, rear camera and WiFi sensor (though not the WiFi antennae oddly enough).
