Missing component pls help

Discussion in 'iPad DIY' started by escoban, Oct 8, 2013.

  1. escoban
    Offline

    escoban iPF Noob

    Joined:
    Oct 8, 2013
    Messages:
    1
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    perth
    Ratings:
    +0 / 0
    iPAD mini - missing component pls help

    halloo

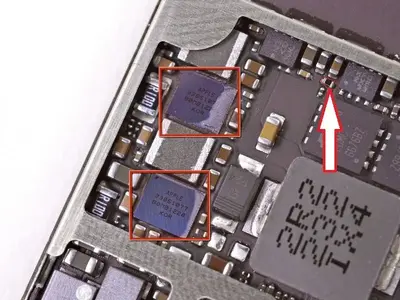

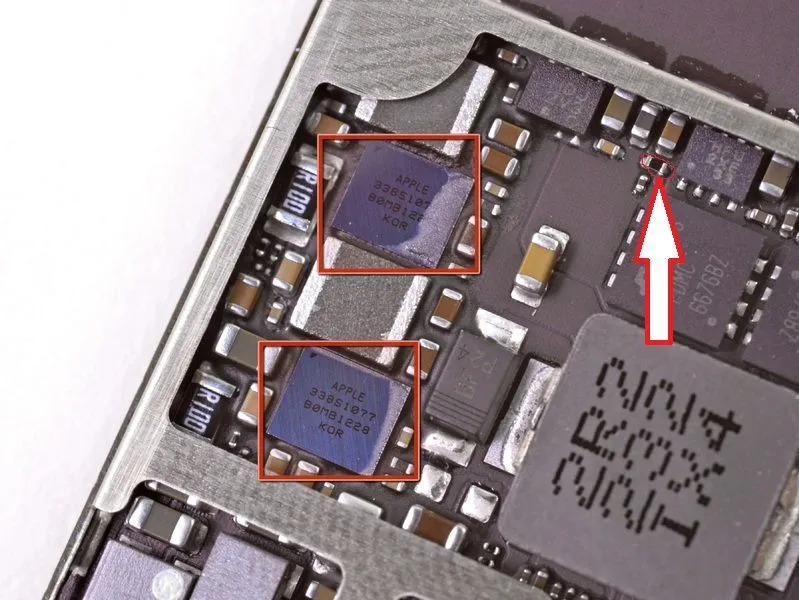

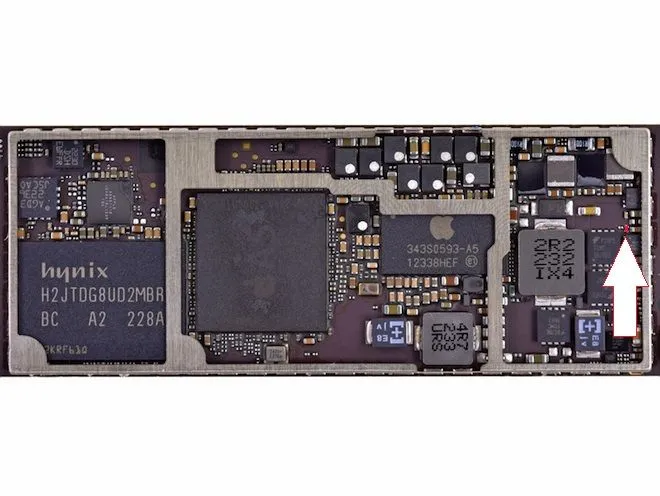

    got a wee problem, I have a missing component on a logic board model A1432, has gone accidantly when I was replacing screen backlight fuse :(
    now no screen at all, no picture no backlight :thumbsdown:

    I still looking for someone with second model just for a mesurement example but no luck yet
    maybe one of you guys can be faster...

    can anyone help me to identify the missing component - I think its a resistor or capicitor but what value??

    thanks
    Last edited: Oct 8, 2013
  2. The OB
    Offline

    The OB Super Moderator Staff Member

    Joined:
    Aug 10, 2012
    Messages:
    4,042
    Thanks Received:
    861
    Trophy Points:
    113
    Location:
    Adelaide, South Australia
    Ratings:
    +931 / 1
    As your question appears to relate to a parts problem related to the Mini, I will transfer your thread to the iPad DIY sub-forum where it is hoped you will receive assistance re your issue.
    [​IMG]
    Regards, Andrew


    Sent from Oz using Tapatalk
    • Like Like x 1
  3. confal44
    Offline

    confal44 iPF Noob

    Joined:
    May 5, 2012
    Messages:
    9
    Thanks Received:
    1
    Trophy Points:
    0
    Location:
    France
    Ratings:
    +1 / 0
    Hi

    This thread is old but for information

    Component is R2205. This is a resistor

    100k
    1%.
    1/20 W
    MF
    201
    Last edited: Apr 15, 2014
    • Like Like x 1
