iPad car mount for Subaru Outback

Discussion in 'iPad DIY' started by dbdoug, Jun 18, 2010.

  1. dbdoug
    Offline

    dbdoug iPF Noob

    Joined:
    Jun 14, 2010
    Messages:
    6
    Thanks Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0

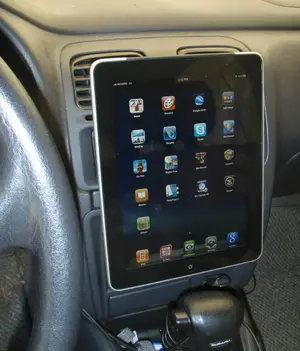

    I discovered that the in-dash cup holder in my Subaru Outback (1998) has a quick release lever at the back and a fairly flat face, so I made it into my iPad mount. I've attached 3 photos of the installation.

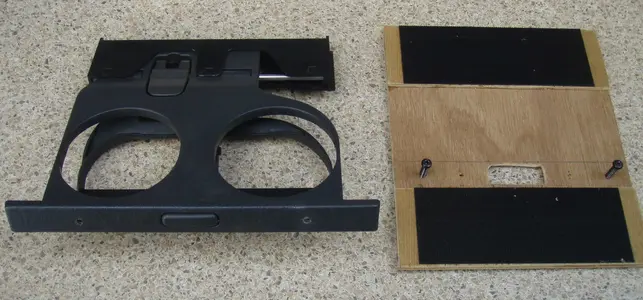

    I cut a piece of 1/8" plywood about 6"x7" (vertical) and marked it for drilling against the face of the cup holder. I drilled two small holes right through the plywood and the front of the cup holder. I cut out an oval in the plywood so that the cup holder release button could function and hold the cup holder against the dash. Then I glued two 2"x6" strips of plywood at the top and bottom so that there would be room for the screw heads to stick out without touching the back of the iPad.

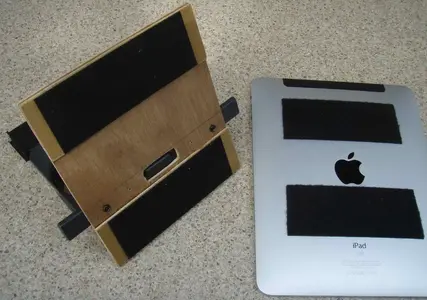

    I attached two 2"x6" strips of heavy duty velcro to the plywood strips and in matching positions on the back of my iPad, avoiding the apple logo which is the wireless antenna.

    I screwed the plywood onto the face of the cup holder with two 3/4" screws, and that was it, ready to slide into the dash. The only drawback is that the heater controls aren't easily reached any more - but hey, it's summer!

    Attached Files:

  2. rowan
    Offline

    rowan iPad Fan

    Joined:
    Apr 20, 2010
    Messages:
    126
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    West Los Angeles (near UCLA)
    Ratings:
    +0 / 0
    That's creative! I don't think the Apple logo is where the wireless antenna is, though.
  3. dbdoug
    Offline

    dbdoug iPF Noob

    Joined:
    Jun 14, 2010
    Messages:
    6
    Thanks Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0
    AppleInsider | Teardown of iPad 3G shows Apple using LCD frame as an antenna

    There are actually FIVE antennas in this iPad:
    Two antennas handle the cell reception -- one is in the RF window on top, the other attaches to the LCD frame.
    A single GPS antenna is also housed in the RF window on top.
    Just like the iPad Wi-Fi, there are two antennas that handle Wi-Fi / Bluetooth connectivity, one in the Apple logo and another to the left of the dock connector.
  4. mtltdi
    Offline

    mtltdi iPF Novice

    Joined:
    Jul 8, 2010
    Messages:
    12
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    Montreal
    Ratings:
    +0 / 0
    How deep is the cupholder area? I wonder if you could have it flip into the dash for a stealth install?
  5. Linkreincarnate
    Offline

    Linkreincarnate iPF Novice

    Joined:
    Jun 9, 2010
    Messages:
    83
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    Georgia
    Ratings:
    +0 / 0
  6. Hasty
    Offline

    Hasty iPad Ninja

    Joined:
    Jun 2, 2010
    Messages:
    2,282
    Thanks Received:
    22
    Trophy Points:
    0
    Location:
    Location
    Ratings:
    +22 / 0
    Love the idea but scared I might get distracted too easily....
  7. CaptKirk
    Offline

    CaptKirk iPad Junkie

    Joined:
    Mar 24, 2010
    Messages:
    636
    Thanks Received:
    1
    Trophy Points:
    0
    Location:
    Sacramento
    Ratings:
    +2 / 0
    Great idea.... Got any clever ideas for a Nissan Titan
  8. benst
    Offline

    benst iPF Novice

    Joined:
    Aug 1, 2010
    Messages:
    27
    Thanks Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0
    Personally, I would buy a cheap silicon cover from ebay for < $10 inc postage, and stick the velcro to that.

    But thank you so much for the idea. It has simplified my plans greatly.
  9. Drag Bunt
    Offline

    Drag Bunt iPad Fan

    Joined:
    Jul 13, 2010
    Messages:
    151
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    the 'burbs of @lanta
    Ratings:
    +1 / 0
  10. AAD
    Offline

    AAD iPF Novice

    Joined:
    Apr 15, 2010
    Messages:
    30
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    Auburn,WA
    Ratings:
    +0 / 0
    We make a kit at Padholdr
    [​IMG]
  11. ipadfan007
    Offline

    ipadfan007 iPF Noob

    Joined:
    Nov 19, 2010
    Messages:
    4
    Thanks Received:
    0
    Trophy Points:
    0
    Ratings:
    +0 / 0
    Good job and nice car :)
  12. Hasty
    Offline

    Hasty iPad Ninja

    Joined:
    Jun 2, 2010
    Messages:
    2,282
    Thanks Received:
    22
    Trophy Points:
    0
    Location:
    Location
    Ratings:
    +22 / 0
    Lol scarcely noticed the iPad holder........was staring in awe at that clean interior.
    Got many kids? :)
