IPad 1 repair - OJ incident

Discussion in 'iPad 1 Forum' started by aquiz1980, Jun 13, 2012.

  1. aquiz1980
    Offline

    aquiz1980 iPF Noob

    Joined:
    Jun 13, 2012
    Messages:
    2
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    Texas
    Ratings:
    +0 / 0
    A buddy of mine brought me an IPad Gen 1 to look at. Apparently one of his kiddos spilled a cup of orange juice all over it. He went to the all mighty google and learned how to open Ipad so he could take a look. I'm guessing he thought he was dealing with a simple cell phone fell in the toilet kinda problem. After breaking a coax connector (from LCD side) he decided he was out of his league and brought this beast to me. I love how all my friends think I can repair anything electronic under the sun.

    First thing first was fix the coax connector - done. Plugged it and nada - no image on screen, so sounds, lights, bells or whistles. So I opened it back up and probed around for any voltages. I didn't find anything. I then informed the owner that I would have to tear down into this thing and by no means guarentee I won't cause more damage. After his blessing I removed the charger connector board. It was covered in OJ so I tried to clean it with alcohol to no avail. I then spot tested it with electron 3A and it held up fine so I dipped it in a jar filled with electron 3A. The chemical ate thru the orange juice no problem. I connect this board to the usb cable and measured around and didn't see anything suspicious. Before putting it back in I decided to do the same cleaning to the other two boards. I reconnected the boards and was now able to access the picture memory...Yay! (btw this guy has a hot wife, lol)

    Thinking I was done I reconnected the LCD and turned the unit on put still no image. Hmmm, feeling defeated I for whatever odd reasons decided the clean the finger prints off the screen. This proved to be something of a miracle. I was able to see a very, very dim clock time and slide arrow. OMG it works...maybe. Well i found my way to adjust the brightness but it didn't get brighter.../wrists. Then God sends me some help in the form of my electronic design engineer with 40+ years experience. He says oh thats just the back light thats dead. Try looking for a power supply circuit that would have a step up transformer to run the back light leds. So behind the LCD is a board covered in black tape. Underneath this tape is the back light power supply circuit.

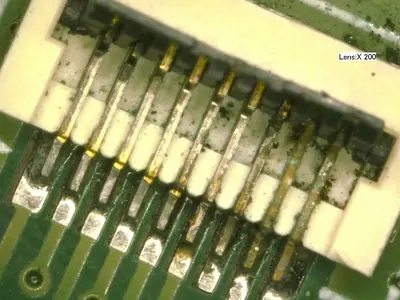

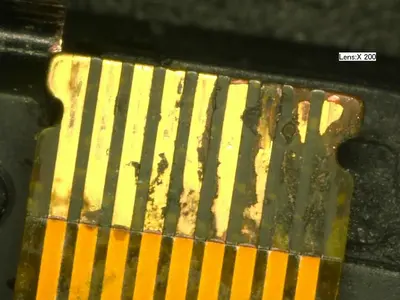

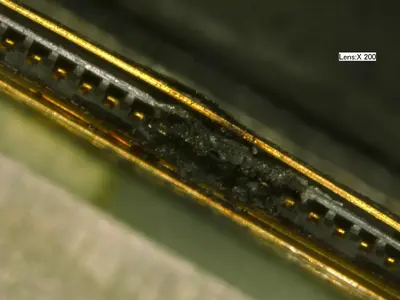

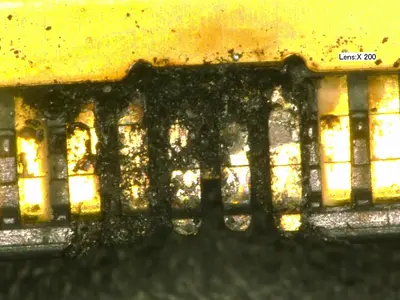

    So connector 1 of the LG Display board is toasty. The ribbon cable attached to it has electrical arc and electrolysis damage. This is actually repairable. Thinking again I'm near finished I find a very bad problem. Connector 2 is fried beyond repair aswell as the cable connected to it. I found the cable for $12 (its on order) and the connector (not on order...can't believe someone wants $18+s/h). If anyone happens to know where i can find this connector cheaper than ebay please let me know :). I removed the bad connector and inspected the pads. Still in good condition. Measured around and didn't find any suspicious shorts/opens.

    I've attached a couple of photos of the horror that OJ can do to an IPad.
    connector 2 cable.jpgconnector 2.jpg
    connector 1.jpgconnector 1 ribbon cable.jpg
  2. zphone
    Offline

    zphone iPad Enthusiast

    Joined:
    Mar 12, 2012
    Messages:
    466
    Thanks Received:
    14
    Trophy Points:
    0
    Location:
    Vancouver
    Ratings:
    +14 / 0
    Man, That proves that you have stamina!
    Not sure the hot wife's going to see it that way :)
  3. aquiz1980
    Offline

    aquiz1980 iPF Noob

    Joined:
    Jun 13, 2012
    Messages:
    2
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    Texas
    Ratings:
    +0 / 0
    I got the connector and cable in last night. I replaced the two and modified the bad ribbon cable. I had to scrape the plastic coating off so that I could tack a 30awg bus wire to it and routed it to a nearby capacitor connected to the ground plane. I fired it up and wahlah it works!! There is only one more problem with this unit. I can see that the oj got underneath the glass (not the digitizer). For $40 its not a big problem at all. Still maybe or maybe not I will dissassemble the screen layers to clean out the juice. Its causing a small light refraction which makes some areas appear brighter. The digitizer works 100% and I can't feel any high spots which is why I believe its under the glass. I snap a picture later and post it up
  4. Hissyfits
    Offline

    Hissyfits iPF Novice

    Joined:
    May 31, 2012
    Messages:
    27
    Thanks Received:
    1
    Trophy Points:
    0
    Ratings:
    +1 / 0
    OMG. Note to self. Never spill on on my iPad.
  5. Rperez414
    Offline

    Rperez414 iPad Fan

    Joined:
    Jan 25, 2011
    Messages:
    103
    Thanks Received:
    8
    Trophy Points:
    18
    Location:
    Sunman, Indiana
    Ratings:
    +8 / 0
    Wow, you can fix anythingl

    Thanks for posting what you did. Might come in handy for someone else someday.
