<HTML5>techniques for optimizing mobile performace

Discussion in 'iPad Development' started by falltina19, Apr 23, 2012.

  1. falltina19
    Offline

    falltina19 iPF Noob

    Joined:
    Apr 23, 2012
    Messages:
    4
    Thanks Received:
    0
    Trophy Points:
    0
    Location:
    london
    Ratings:
    +0 / 0
    INTRODUCTIONSpinning refreshes, choppy page transitions, and periodic delays in tap events are just a few of the headaches in today’s mobile web environments. Developers are trying to get as close to native as they possibly can, but are often derailed by hacks, resets, and rigid frameworks.In this article, we will discuss the bare minimum of what it takes to create a mobile HTML5 web app. The main point is to unmask the hidden complexities which today’s mobile frameworks try to hide. You will see a minimalistic approach (using core HTML5 APIs) and basic fundamentals that will empower you to write your own framework or contribute to the one you currently use.HARDWARE ACCELERATIONNormally, GPUs handle detailed 3D modeling or CAD diagrams, but in this case, we want our primitive drawings (divs, backgrounds, text with drop shadows, images, etc...) to appear smooth and animate smoothly via the GPU. The unfortunate thing is that most front-end developers are dishing this animation process off to a third-party party framework without being concerned about the semantics, but should these core CSS3 features masked? Let me give you a few reasons why caring about this stuff is important: 1.Memory allocation and computational burden — If you go around compositing every element in the DOM just for the sake of hardware acceleration, the next person who works on your code may chase you down and beat you severely. 2.Power Consumption — Obviously, when hardware kicks in, so does the battery. When developing for mobile, developers are forced to take the wide array of device constraints into consideration while writing mobile web apps. This will be even more prevalent as browser makers start to enable access to more and more device hardware. 3.Conflicts — I encountered glitchy behaviour when applying hardware acceleration to parts of the page that were already accelerated. So knowing if you have overlapping acceleration is *very* important. To make user interaction smooth and as close to native as possible, we must make the browser work for us. Ideally, we want the mobile device CPU to set up the initial animation, then have the GPU responsible for only compositing different layers during the animation process. This is what translate3d, scale3d and translateZ do — they give the animated elements their own layer, thus allowing the device to render everything together smoothly. PAGE TRANSITIONSLet’s take a look at three of the most common user-interaction approaches when developing a mobile web app: slide, flip, and rotation effects.You can view this code in action [url href="http://5jueding.com/test/tutorial.html"]here[/url] (Note: This demo is built for a mobile device, so fire up an emulator, use your phone or tablet, or reduce the size of your browser window to ~1024px or less).First, we’ll dissect the slide, flip, and rotation transitions and how they’re accelerated. Notice how each animation only takes three or four lines of CSS and JavaScript.SLIDINGThe most common of the three transition approaches, sliding page transitions mimics the native feel of mobile applications. The slide transition is invoked to bring a new content area into the view port.For the slide effect, first we declare our markup: Home Page


    Products Page


    About Page


    Notice how we have this concept of staging pages left or right. It could essentially be any direction, but this is most common.We now have animation plus hardware acceleration with just a few lines of CSS. The actual animation happens when we swap classes on the page div elements..page { position: absolute; width: 100%; height: 100%; /*activate the GPU for compositing each page */ -webkit-transform: translate3d(0, 0, 0);}translate3d(0,0,0) is known as the “silver bullet†approach.When the user clicks a navigation element, we execute the following JavaScript to swap the classes. No third-party frameworks are being used, this is straight up JavaScript! ;)function getElement(id) { return document.getElementById(id);}function slideTo(id) { //1.) the page we are bringing into focus dictates how // the current page will exit. So let's see what classes // our incoming page is using. We know it will have stage[right|left|etc...] var classes = getElement(id).className.split(' '); //2.) decide if the incoming page is assigned to right or left // (-1 if no match) var stageType = classes.indexOf('stage-left'); //3.) on initial page load focusPage is null, so we need // to set the default page which we're currently seeing. if (FOCUS_PAGE == null) { // use home page FOCUS_PAGE = getElement('home-page'); } //4.) decide how this focused page should exit. if (stageType > 0) { FOCUS_PAGE.className = 'page transition stage-right'; } else { FOCUS_PAGE.className = 'page transition stage-left'; } //5. refresh/set the global variable FOCUS_PAGE = getElement(id); //6. Bring in the new page. FOCUS_PAGE.className = 'page transition stage-center';}stage-left or stage-right becomes stage-center and forces the page to slide into the center view port. We are completely depending on CSS3 to do the heavy lifting..stage-left { left: -480px;}.stage-right { left: 480px;}.stage-center { top: 0; left: 0;}Next, let’s take a look at the CSS which handles mobile device detection and orientation. We could address every device and every resolution (see media query resolution). I used just a few simple examples in this demo to cover most portrait and landscape views on mobile devices. This is also useful for applying hardware acceleration per device. For example, since the desktop version of WebKit accelerates all transformed elements (regardless if it’s 2-D or 3-D), it makes sense to create a media query and exclude acceleration at that level. Note that hardware acceleration tricks do not provide any speed improvement under Android Froyo 2.2+. All composition is done within the software./* iOS/android phone landscape screen width*/@media screen and (max-device-width: 480px) and (orientation:landscape) { .stage-left { left: -480px; } .stage-right { left: 480px; } .page { width: 480px; }}FLIPPINGOn mobile devices, flipping is known as actually swiping the page away. Here we use some simple JavaScript to handle this event on iOS and Android (WebKit-based) devices.View it in action [url href="http://5jueding.com/test/tutorial.html"]here[/url].When dealing with touch events and transitions, the first thing you’ll want is to get a handle on the current position of the element. See this doc for more information on WebKitCSSMatrix.function pageMove(event) { // get position after transform var curTransform = new WebKitCSSMatrix(window.getComputedStyle(page).webkitTransform); var pagePosition = curTransform.m41;}Since we are using a CSS3 ease-out transition for the page flip, the usual element.offsetLeft will not work.Next we want to figure out which direction the user is flipping and set a threshold for an event (page navigation) to take place.if (pagePosition >= 0) { //moving current page to the right //so means we're flipping backwards if ((pagePosition > pageFlipThreshold) || (swipeTime < swipeThreshold)) { //user wants to go backward slideDirection = 'right'; } else { slideDirection = null; }} else { //current page is sliding to the left if ((swipeTime < swipeThreshold) || (pagePosition < pageFlipThreshold)) { //user wants to go forward slideDirection = 'left'; } else { slideDirection = null; }}You’ll also notice that we are measuring the swipeTime in milliseconds as well. This allows the navigation event to fire if the user quickly swipes the screen to turn a page.To position the page and make the animations look native while a finger is touching the screen, we use CSS3 transitions after each event firing.function positionPage(end) { page.style.webkitTransform = 'translate3d('+ currentPos + 'px, 0, 0)'; if (end) { page.style.WebkitTransition = 'all .4s ease-out'; //page.style.WebkitTransition = 'all .4s cubic-bezier(0,.58,.58,1)' } else { page.style.WebkitTransition = 'all .2s ease-out'; } page.style.WebkitUserSelect = 'none';}I tried to play around with cubic-bezier to give the best native feel to the transitions, but ease-out did the trick.Finally, to make the navigation happen, we must call our previously defined slideTo() methods that we used in the last demo.track.ontouchend = function(event) { pageMove(event); if (slideDirection == 'left') { slideTo('products-page'); } else if (slideDirection == 'right') { slideTo('home-page'); }}ROTATINGNext, let’s take a look at the rotate animation being used in this demo. At any time, you can rotate the page you’re currently viewing 180 degrees to reveal the reverse side by tapping on the “Contact†menu option. Again, this only takes a few lines of CSS and some JavaScript to assign a transition class onclick. NOTE: The rotate transition isn't rendered correctly on most versions of Android because it lacks 3D CSS transform capabilities. Unfortunately, instead of ignoring the flip, Android makes the page "cartwheel" away by rotating instead of flipping. We recommend using this transition sparingly until support improves.The markup (basic concept of front and back):...

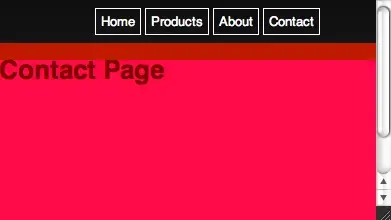

    Contact Page

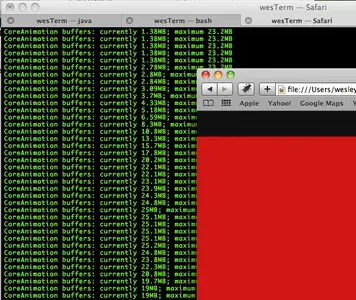

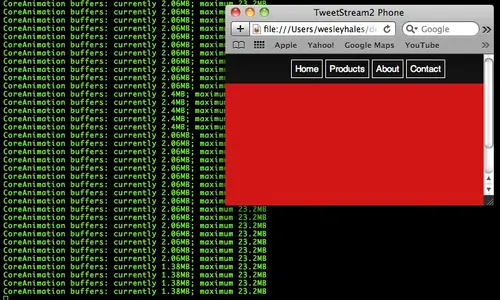

    The JavaScript:function flip(id) { // get a handle on the flippable region var front = getElement('front'); var back = getElement('back'); // again, just a simple way to see what the state is var classes = front.className.split(' '); var flipped = classes.indexOf('flipped'); if (flipped >= 0) { // already flipped, so return to original front.className = 'normal'; back.className = 'flipped'; FLIPPED = false; } else { // do the flip front.className = 'flipped'; back.className = 'normal'; FLIPPED = true; }}The CSS:/*----------------------------flip transition */#back,#front { position: absolute; width: 100%; height: 100%; -webkit-backface-visibility: hidden; -webkit-transition-duration: .5s; -webkit-transform-style: preserve-3d;}.normal { -webkit-transform: rotateY(0deg);}.flipped { -webkit-user-select: element; -webkit-transform: rotateY(180deg);}DEBUGGING HARDWARE ACCELERATIONNow that we have our basic transitions covered, let’s take a look at the mechanics of how they work and are composited.To make this magical debugging session happen, let’s fire up a couple of browsers and your IDE of choice. First start Safari from the command line to make use of some debugging environment variables. I’m on Mac, so the commands might differ based on your OS. Open the Terminal and type the following:$> export CA_COLOR_OPAQUE=1$> export CA_LOG_MEMORY_USAGE=1$> /Applications/Safari.app/Contents/MacOS/SafariThis starts Safari with a couple of debugging helpers. CA_COLOR_OPAQUE shows us which elements are actually composited or accelerated. CA_LOG_MEMORY_USAGE shows us how much memory we are using when sending our drawing operations to the backing store. This tells you exactly how much strain you are putting on the mobile device, and possibly give hints to how your GPU usage might be draining the target device’s battery.Now let’s fire up Chrome so we can see some good frames per second (FPS) information:Open the Google Chrome web browser.In the URL bar, type about:flags.Scroll down a few items and click on “Enable†for FPS Counter.Note: Do not enable the GPU compositing on all pages option. The FPS counter only appear in the left-hand corner if the browser detects compositing in your markup—and that is what we want in this case.If you view this page in your souped up version of Chrome, you will see the red FPS counter in the top left hand corner.This is how we know hardware acceleration is turned on. It also gives us an idea on how the animation runs and if you have any leaks (continuous running animations that should be stopped).Another way to actually visualize the hardware acceleration is if you open the same page in Safari (with the environment variables I mentioned above). Every accelerated DOM element have a red tint to it. This shows us exactly what is being composited by layer. Notice the white navigation is not red because it is not accelerated.1.pngA similar setting for Chrome is also available in the about:flags “Composited render layer bordersâ€.Another great way to see the composited layers is to view the [url href="http://www.webkit.org/blog-files/leaves/"]WebKit falling leaves demo[/url] while this mod is applied.2.pngAnd finally, to truly understand the graphics hardware performance of our application, let’s take a look at how memory is being consumed. Here we see that we are pushing 1.38MB of drawing instructions to the CoreAnimation buffers on Mac OS. The Core Animation memory buffers are shared between OpenGL ES and the GPU to create the final pixels you see on the screen.3.pngWhen we simply resize or maximize the browser window, we see the memory expand as well.4.pngThis gives you an idea of how memory is being consumed on your mobile device only if you resize the browser to the correct dimensions. If you were debugging or testing for iPhone environments resize to 480px by 320px. We now understand exactly how hardware acceleration works and what it takes to debug. It’s one thing to read about it, but to actually see the GPU memory buffers working visually really brings things into perspective.BEHIND THE SCENES: FETCHING AND CACHINGNow it’s time to take our page and resource caching to the next level. Much like the approach that JQuery Mobile and similar frameworks use, we are going to pre-fetch and cache our pages with concurrent AJAX calls.Let’s address a few core mobile web problems and the reasons why we need to do this:Fetching: Pre-fetching our pages allows users to take the app offline and also enables no waiting between navigation actions. Of course, we don’t want to choke the device’s bandwidth when the device comes online, so we need to use this feature sparingly.Caching: Next, we want a concurrent or asynchronous approach when fetching and caching these pages. We also need to use localStorage (since it’s well supported amongst devices) which unfortunately isn’t asynchronous.AJAX and parsing the response: Using innerHTML() to insert the AJAX response into the DOM is dangerous (and unreliable?). We instead use a reliable mechanism for AJAX response insertion and handling concurrent calls. We also leverage some new features of HTML5 for parsing the xhr.responseText.Building on the code from the Slide, Flip, and Rotate , we start out by adding some secondary pages and linking to them. We’ll then parse the links and create transitions on the fly.5.pngAs you can see, we are leveraging semantic markup here. Just a link to another page. The child page follows the same node/class structure as its parent. We could take this a step further and use the data-* attribute for “page†nodes, etc... And here is the detail page (child) located in a separate html file (/demo2/home-detail.html) which will be loaded, cached and set up for transition on app load. Home Page

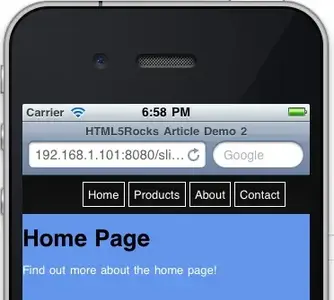

    Find out more about the home page!
    Now lets take a look at the JavaScript. For simplicity sake, I am leaving any helpers or optimizations out of the code. All we are doing here is looping through a specified array of DOM nodes to dig out links to fetch and cache. Note—For this demo, this method fetchAndCache() is being called on page load. We rework it in the next section when we detect the network connection and determine when it should be called.var fetchAndCache = function() { // iterate through all nodes in this DOM to find all mobile pages we care about var pages = document.getElementsByClassName('page'); for (var i = 0; i < pages.length; i++) { // find all links var pageLinks = pages.getElementsByTagName('a'); for (var j = 0; j < pageLinks.length; j++) { var link = pageLinks[j]; if (link.hasAttribute('href') && //'#' in the href tells us that this page is already loaded in the DOM - and // that it links to a mobile transition/page !(/[\#]/g).test(link.href) && //check for an explicit class name setting to fetch this link (link.className.indexOf('fetch') >= 0)) { //fetch each url concurrently var ai = new ajax(link,function(text,url){ //insert the new mobile page into the DOM insertPages(text,url); }); ai.doGet(); } } }};We ensure proper asynchronous post-processing through the use of the “AJAX†object. There is a more advanced explanation of using localStorage within an AJAX call in Working Off the Grid with HTML5 Offline. In this example, you see the basic usage of caching on each request and providing the cached objects when the server returns anything but a successful (200) response.function processRequest () { if (req.readyState == 4) { if (req.status == 200) { if (supports_local_storage()) { localStorage = req.responseText; } if...al.html"]View the network detection demo here.CONCLUSIONThe journey down the road of mobileHTML5 apps is just beginning. Now you see the very simple and basic underpinnings of a mobile “framework†built solely around HTML5 and it’s supporting technologies. I think it’s important for developers to work with and address these features at their core and not masked by a wrapper.
